Introduction

The Yavin API lets developers and integrators embed payment functionalities into their own user journeys: process payments on a terminal, generate online payment links, print and share receipts, and access transaction data.

Typical use cases: payment on terminal from a POS, kiosk payment, Click & Collect online payment, Order & Pay via QR code, Pay at Table via QR code.

Choose your integration

Answer one question first: where does the payment happen?

Your situationIntegration to use
POS and Yavin Pay on the same Android deviceAndroid Intent API
POS on a different device, same local network as the terminalLocal API
POS on a different network, or web-based POSCloud API
Online payment by link (ecommerce, QR code, Pay at Table)Ecommerce API
Server-to-server reporting and refundsWebservices API

The three in-store APIs (Local, Cloud, Android Intent) expose the same payment features. The difference is only the transport: local HTTP, cloud HTTPS with webhooks, or Android deep links. Choose based on your network topology, then keep the same integration everywhere.

Set up your sandbox

Please contact our team at partnerships@yavin.com in order to get a sandbox environment as well as a test terminal if need be.

Sandbox specifics

  • Base URL: replace api.yavin.com with api.sandbox.yavin.com (identical paths). The Local API is unaffected (local network); its HTTPS add-on uses dedicated sandbox hostnames
  • Credentials are fully separate: a sandbox API key never works in production, and vice versa. The sandbox backoffice displays an orange SANDBOX banner at all times
  • The sandbox backoffice is accessible through this link : my.sandbox.yavin.com
  • The sandbox ecommerce payment page uses no test cards: the payment is validated as soon as you click Pay

Authentication

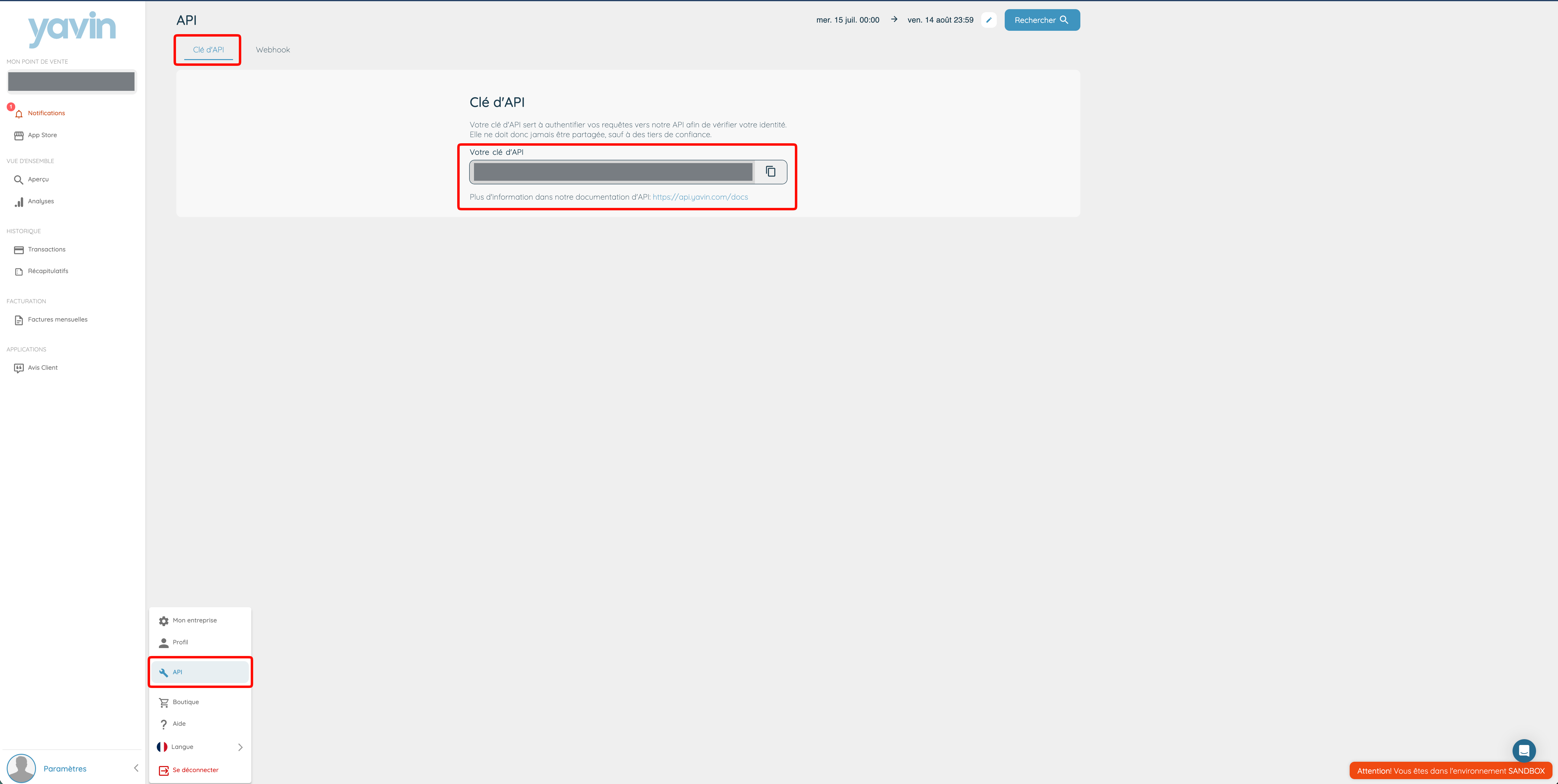

Yavin uses a company object to represent a physical point of sale. Each company has its own API key, available on my.yavin.com in the API tab.

Documentation illustration
APIAuthentication
Local APIMerchant login in Yavin Pay with My Yavin credentials
Android Intent APIMerchant login in Yavin Pay with My Yavin credentials
Cloud APIAPI key in the Authorization: Bearer YOUR_API_KEY header
Ecommerce APIAPI key in the Yavin-Secret header
Webservices APIAPI key in the Yavin-Secret header

Every HTTPS request must be authenticated and must carry Content-Type: application/json.

Conventions

  • Amounts are always integers, in cents, and must be positive (1000 = 10,00 €). Never send a negative amount: not every API rejects it (on the Android Intent API, its absolute value is charged)
  • Currency codes are ISO 4217 (EUR, CHF, GBP). The currency actually used is the one configured on the merchant profile
  • Statuses: in-store transaction results are ok or ko; ecommerce checkouts add pending and authorised
  • Idempotency: always send an idempotentUuid on payment requests, one per payment attempt. See IdempotentUuid Management
  • Naming: the convention (camelCase or snake_case) varies by API and is stated at the top of each API page

In-store payment flow

Local, Cloud and Android Intent APIs are used for in-store payments only.

  1. The merchant selects the items or the amount on the POS
  2. The merchant taps the payment button on the POS
  3. The POS calls the payment route with type debit and an idempotentUuid
  4. The customer pays on the terminal

Successful payment: the response is taken into account on the POS, including tips (as overpayment, "trop perçu") if any.

Failed payment, in any of these cases the payment is killed, the response reaches the POS, and you can start a new payment (with a new idempotentUuid):

  • The customer takes more than 60 seconds on the tips or review screens
  • The customer takes more than 60 seconds to present the card
  • The card is declined by the payment gateway

Online payment flow

  1. The customer selects items on your website and clicks pay; your server is notified
  2. Your server calls the Yavin API to generate a payment link
  3. The Yavin server returns a unique payment link
  4. Your server redirects the customer to the payment link (Yavin-hosted page)
  5. The customer enters their payment information in the widget
  6. Yavin calls your return_url_success or return_url_cancelled (GET with cartId and status in the query params) and your webhook_url with the checkout result
  7. Your server handles the result and displays the relevant information to the customer

See the Ecommerce API page for capture modes (instant vs deferred), payment link lifetime, statuses, and multi-payment behaviour.

HTTP error codes

CodeMeaning
400Bad Request: the request is invalid (a missing Content-Type: application/json header is the most frequent cause)
401Unauthorized: the API key is invalid or the terminal cannot be accessed with this API key
404Not Found: the route does not exist
405Method Not Allowed: wrong HTTP method for this route
500Internal Server Error: issue on our side, try again later and contact support if it persists

Error response formats

The error body shape depends on the endpoint family. Write one handler per shape; do not assume a single format across APIs.

EndpointsError bodyExample
In-store payment endpoints (Local API with HTTP 200, Cloud API){"status": "ko", "message": "..."}{"status": "ko", "message": "Error: amount needs to be greater than 0"}
Ecommerce /generate_link/ (validation){"errors": {"field": ["message"]}}{"errors": {"checkout_external_id": ["This checkout_external_id already exists"]}}
Ecommerce /cancel_link/, /capture_transactions/, /get_cart_information/{"error": "..."}{"error": "Cart has already been cancelled"}
Webservices refund, 400 malformed requestOne object keyed by field{"amount": ["cannot be greater than the transaction's total amount"]}
